Product Summary
The PCA82C250T/N4 is the interface between the CAN protocol controller and the physical bus. The device provides differential transmit capability to the bus and differential receive capability to the CAN controller.
Parametrics
Absolute maximum rating: (1)VCC, supply voltage: -0.3 +9.0 V; (2)Vn, DC voltage at pins 1, 4, 5 and 8: -0.3 VCC + 0.3 V; (3)V6, 7, DC voltage at pins 6 and 7 at 0 V < VCC < 5.5 V;no time limit: -8.0 +18.0 V; (4)Vtrt, transient voltage at pins 6 and 7: -150 +100 V; (5)Tstg, storage temperature: -55 +150 ℃; (6)Tamb, ambient temperature: -40 +125 ℃; (7)Tvj, virtual junction temperature: -40 +150 ℃; (8)Vesd, electrostatic discharge voltage: -2000 +2000 V at Classification A: human body model; C = 100 pF; R = 1500 Ω; V = ±2000 V; -200 +200 V at Classification B: machine model; C = 200 pF; R = 25 Ω; V = ±200 V.
Features
Features: (1)Fully compatible with the “ISO 11898” standard; (2)High speed (up to 1 Mbaud); (3)Bus lines protected against transients in an automotive environment; (4)Slope control to reduce Radio Frequency Interference(RFI); (5)Differential receiver with wide common-mode range for high immunity against ElectroMagnetic Interference; (6)(EMI); (7)Thermally protected; (8)Short-circuit proof to battery and ground; (9)Low-current standby mode; (10)An unpowered node does not disturb the bus lines; (11)At least 110 nodes can be connected.

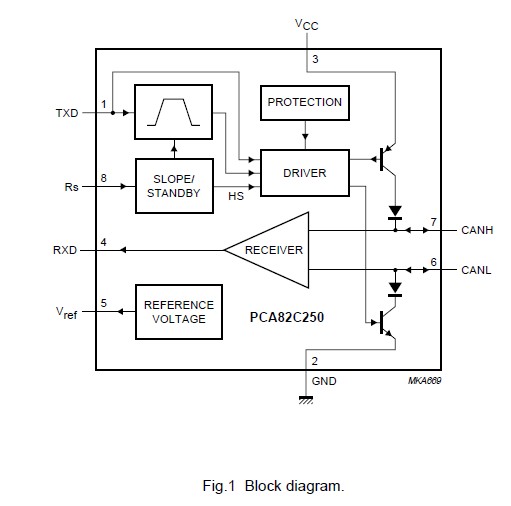

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PCA82C250T/N4,112 |
NXP Semiconductors |
Network Controller & Processor ICs HI SPD CAN TRANSCVR |
Data Sheet |
Negotiable |
|
||||
|
PCA82C250T/N4,115 |
NXP Semiconductors |
Network Controller & Processor ICs HI SPD CAN TRANSCVR |
Data Sheet |
Negotiable |
|
||||
|
PCA82C250T/N4,118 |
NXP Semiconductors |
Network Controller & Processor ICs HI-SPEED CAN XCVR |
Data Sheet |
Negotiable |
|
||||
