M30624FGAFP

Product Summary

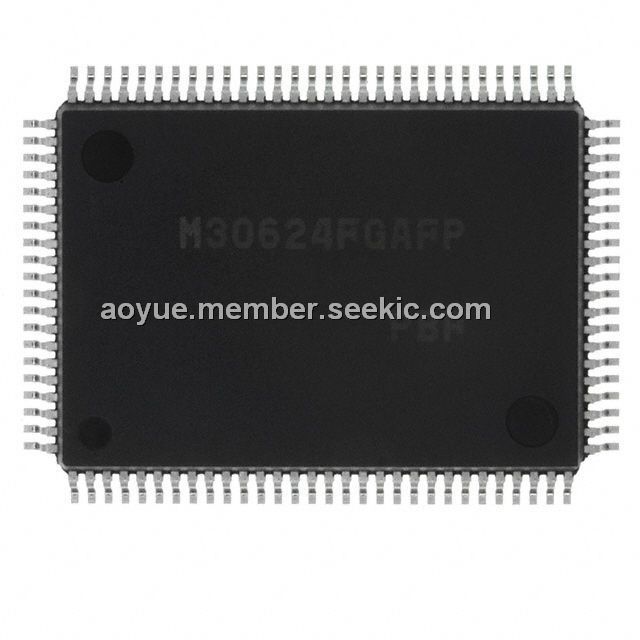

The M30624FGAFP is single-chip microcomputers which built using the high-performance silicon gate CMOS process. Using a M16C/60 Series CPU core, this device is packaged in a 100-pin plastic molded QFP. This single-chip microcomputer operate using sophisticated instructions featuring a high level of instruction efficiency. With 1M bytes of address space, it is capable of executing instructions at high speed. It is also feature a built-in multiplier and DMAC, making them ideal for controlling office, communications, industrial equipment, and other high-speed processing applications. The M16C/62A group includes a wide range of products with different internal memory types and sizes and various package types.

Parametrics

Absolute maximum ratings: (1)Supply voltage, Vcc: -0.3 to 6.5V; (2)Analog supply voltage, AVcc: -0.3 to 6.5V; (3)Input voltage, VI: -0.3 to Vcc+0.3V; (4)Output voltage, VO: -0.3 to Vcc+0.3V; (5)Power dissipation, Pd: 300mW; (6)Operating ambient temperature, Topr: -20 to 85 / -40 to 85℃; (7)Storage temperature, Tstg: -65 to 150℃.

Features

Features: (1)Memory capacity: ROM (See Figure 1.1.4. ROM Expansion), RAM 3K to 20K bytes; (2)Shortest instruction execution time: 62.5ns (f(XIN)=16MHZ, VCC=5V), 100ns (f(XIN)=10MHZ, VCC=3V, with software one-wait) : Mask ROM, flash memory 5V version; (3)Supply voltage: 4.2V to 5.5V (f(XIN)=16MHZ, without software wait) : Mask ROM, flash memory 5V version; (4)2.7V to 5.5V (f(XIN)=10MHZ with software one-wait) : Mask ROM, flash memory 5V version; (5)Low power consumption: 25.5mW ( f(XIN)=10MHZ, with software one-wait, VCC = 3V); (6)Interrupts: 25 internal and 8 external interrupt sources, 4 software interrupt sources; 7 levels (including key input interrupt); (7)Multifunction 16-bit timer: 5 output timers + 6 input timers; (8)Serial I/O: 5 channels (3 for UART or clock synchronous, 2 for clock synchronous); (9)DMAC: 2 channels (trigger: 24 sources); (10)A-D converter: 10 bits X 8 channels (Expandable up to 10 channels); (11)D-A converter: 8 bits X 2 channels.

Diagrams
