Product Summary
The LT1930AES5#TRPBF is the industry’s highest power SOT-23 switching regulators. Both include an internal 1A, 36V switch allowing high current outputs to be generated in a small footprint. The LT1930AES5#TRPBF switch at 1.2MHz, allowing the use of tiny, low cost and low height capacitors and inductors.
Parametrics
Absolute maximum ratings: (1)VIN Voltage: 16V; (2)SW Voltage: –0.4V to 36V; (3)FB Voltage: 2.5V; (4)Current Into FB Pin: ±1mA; (5)SHDN Voltage: 10V; (6)Maximum Junction Temperature:125℃; (7)Operating Temperature Range: –40℃ to 85℃; (8)Storage Temperature Range: –65℃ to 150℃; (9)Lead Temperature (Soldering, 10 sec): 300℃.
Features
Features: (1)2.2MHz Switching Frequency; (2)Low VCESAT Switch: 400mV at 1A; (3)High Output Voltage: Up to 34V; (4)12V at 250mA from 5V Input; (5)Wide Input Range: 2.6V to 16V; (6)Uses Small Surface Mount Components; (7)Low Shutdown Current: <1mA; (8)Low Profile (1mm) ThinSOTTM Package; (9)Pin-for-Pin Compatible with the LT1613.

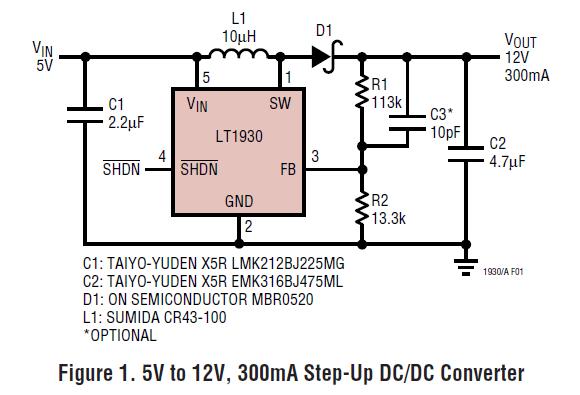

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1930AES5#TRPBF |
|
IC REG BOOST ADJ 1A TSOT23-5 |
Data Sheet |
|
|
||||||||||
