Product Summary
The MAX823TEUK+T microprocessor (μP) supervisory circuits combine reset output, watchdog, and manual reset input functions in 5-pin SOT23 and SC70 packages. They significantly improve system reliability and accuracy compared to separate ICs or discrete components. The MAX823TEUK+T is specifically designed to ignore fast transients on VCC.
Parametrics
Absolute maximum ratings: (1)VCC: -0.3V to +6.0V; (2)All Other Pins: -0.3V to (VCC + 0.3V); (3)Input Current, All Pins Except RESET and RESET: 20mA; (4)Output Current, RESET, RESET: 20mA; (5)Continuous Power Dissipation (TA = +70℃): 5-Pin SC70 (derate 3.1mW/℃ above +70℃): 247mW, 5-Pin SOT23 (derate 7.1mW/℃ above +70℃): 571mW; (6)Operating Temperature Range: -40℃ to +85℃; (7)Storage Temperature Range: -65℃ to +150℃; (8)Lead Temperature (soldering, 10s): +300℃.
Features
Features: (1)Precision Monitoring of +2.5V, +3V, +3.3V, and +5V Power Supplies; (2)Operating Current: 2μA; (3)Fully Specified Over Temperature; (4)140ms min Power-On Reset; (5)Guaranteed RESET Valid to VCC = 1V; (6)Power-Supply Transient Immunity; (7)Watchdog Timer with 1.6s Timeout; (8)Manual Reset Input; (9)No External Components.

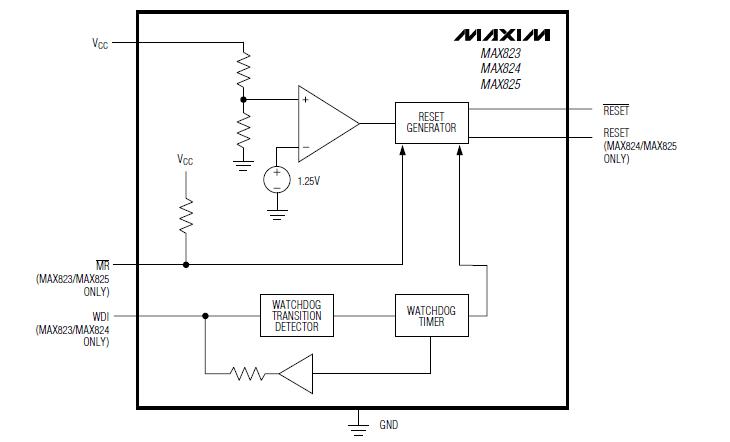

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX823TEUK+T |
Maxim Integrated Products |
Supervisory Circuits 5-Pin MPU Supervisor |
Data Sheet |
|
|
||||||||||||
